Speedy Bike

EFFORTLESSLY WITH YOUR OWN POWER

If you are looking for ease of mobility and sporting riding style, the Speedy Bike is a must have. Driving the bike is fun; it takes you safely to your destination and promotes good health.

IN THE BEGINNING WAS THE BIKE

The Speedy Bike was the first wheelchair towing device; it was developed in 1994 by Speedy. The classic model has been continually improved over two decades and has proven itself in everyday use a thousand times over. The principle of the simple clutch and lift system can be applied to any other device development. The Speedy Bike was designed as a robust everyday device for adult riders.

Using the 8-speed hub gearshift and backpedal brakes is easy. Since the Speedy Bike is not only powered by the hand pedals, but also controlled by them, an infinitely adjustable steering damper prevents unwanted steering movements. The rider can freely choose the power to apply to the steering motion. The Speedy Bike can be safely parked on the stand when not in use. It also facilitates coupling and prevents the rider’s feet slipping from the foot rest while riding.

technical specifications

Weight: approx. 13 kg

Recommended Maximum speed: 12 km/h

Towing capacity: max. 120 kg

Wheel sizes: 20 inch, 26 inch

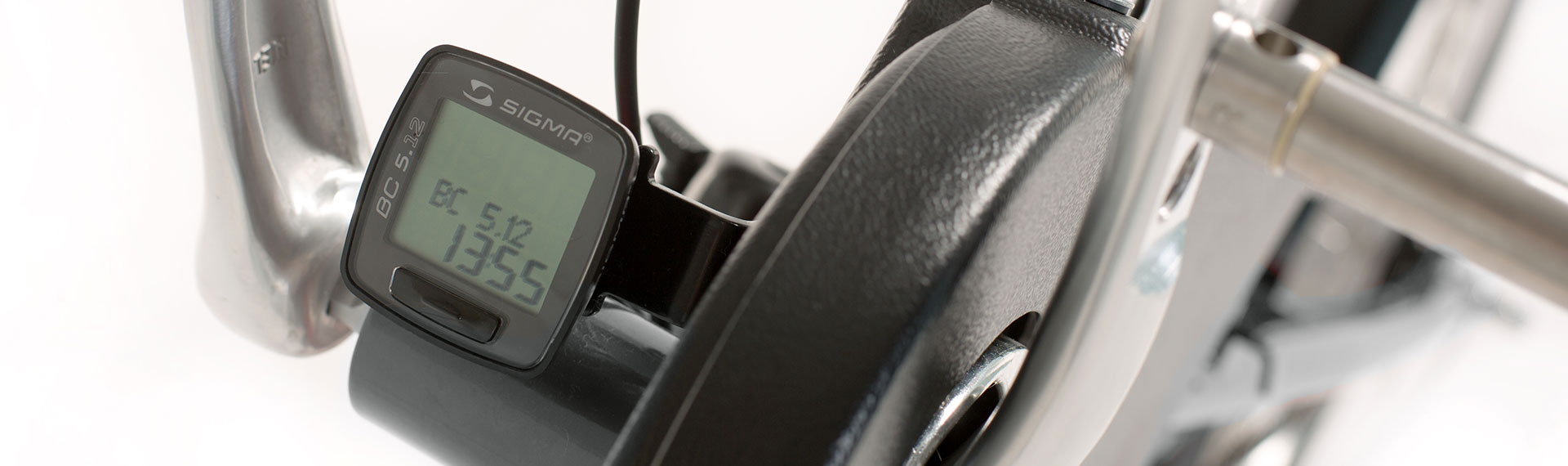

Frame/equipment: St37 steel powder coated in RAL colour, standard, reinforced or lengthened frame, driving pinion with 18-23 teeth, kink protection system for Bowden cables, automatic lift system (stainless steel), infinitely variable steering dampers, completely sealed chain guard, frame integrated chain tensioner, stand, bell, trip computer

Cranks: straight cranks 170 - 110 mm pitch circle, V cranks 170 mm

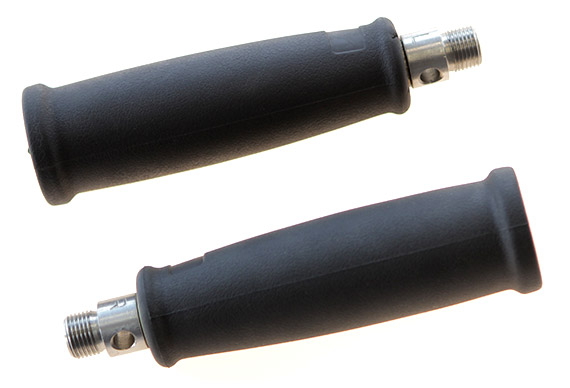

Handles: horizontal handles, ergonomic handles (optionally with back of hand support, lower arm support or wrist support), Tetra 4 handles

Tyres: Schwalbe Marathon plus 20 x 1.75 | Schwalbe Black Jack 20 x 1.90 | Schwalbe・Marathon・plus・26・x・1

Gear/brake system: Shimano 8 speed hub gear with backpedal brakes: Twist-grip gears | grid gears | chin gears | mountain drive gears (2.5x reduction ratio)

Optional equipment: LED lighting, Teflon tube chain casing, luggage rack, Ortlieb pannier bags, tandem handle horizontal or at an angle (not with chin gears), leg support, exercise bike, manoeuvring system

optional accessories

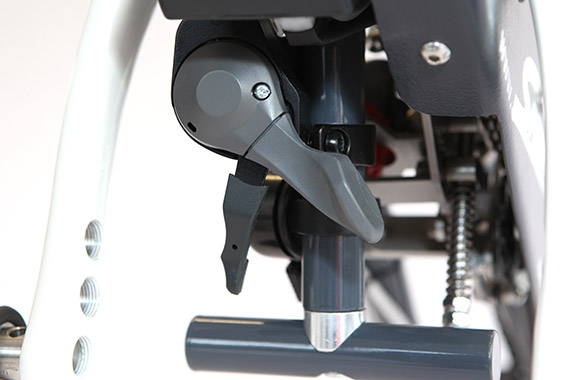

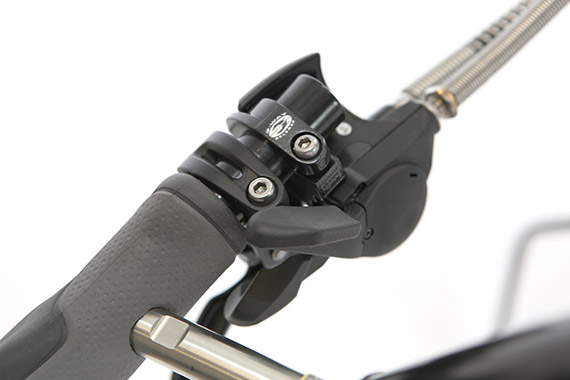

With latching gearshift on handle.

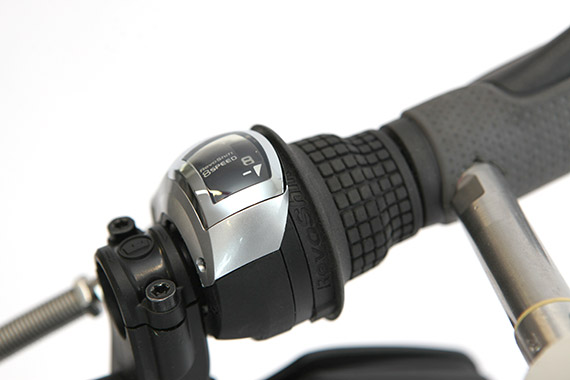

With twist-grip gearshift on handle.

Operated by pushing or pulling.

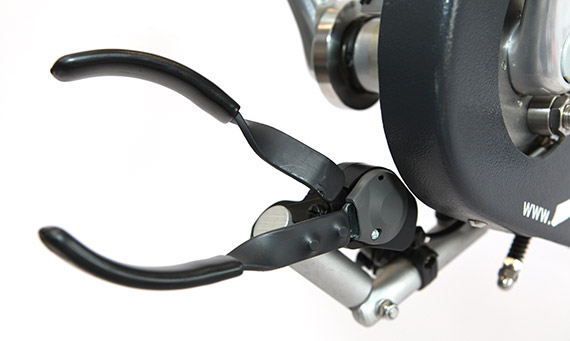

Change gears with your chin in case of missing hand function.

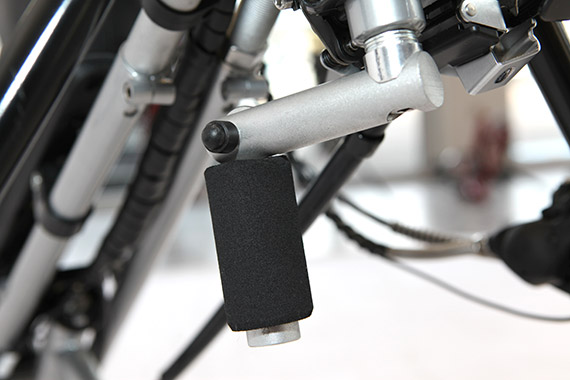

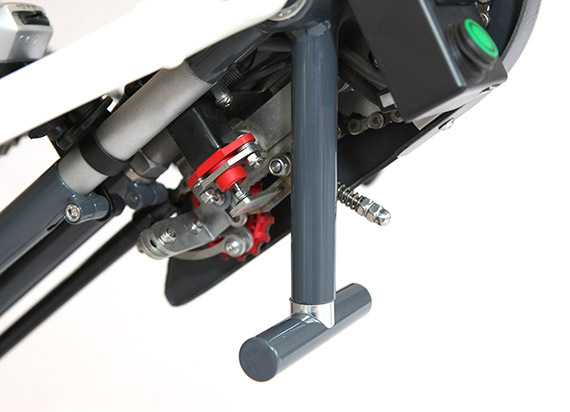

Handle for one - or two-sided lifting of the device when coupling and uncoupling.

The handle facilitates use when coupling and uncoupling.

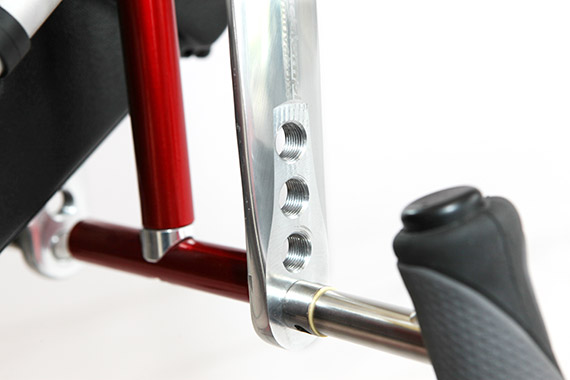

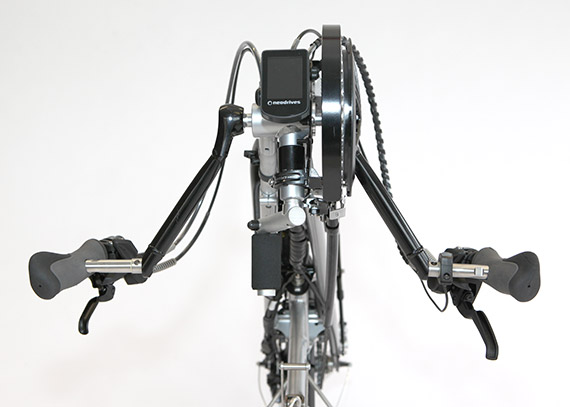

Different crank lengths offered: 110, 130, 150 and 170 mm.

Extends the grip distance to approx. 20 cm

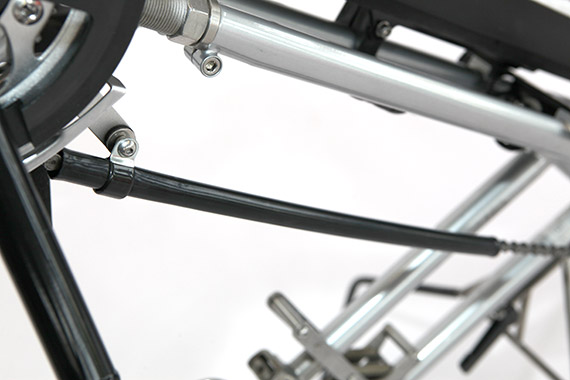

Covers the chain near the knee to protect the driver from soiling from the chain.

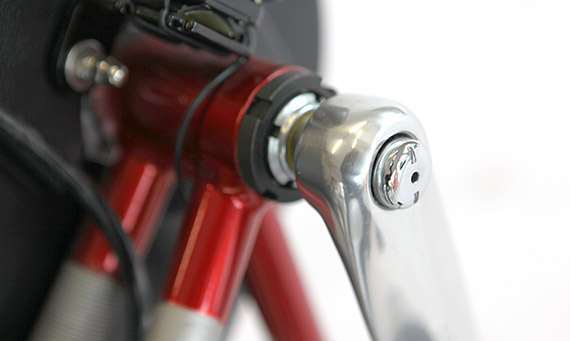

Additional gears in conjunction with hub gearshift.

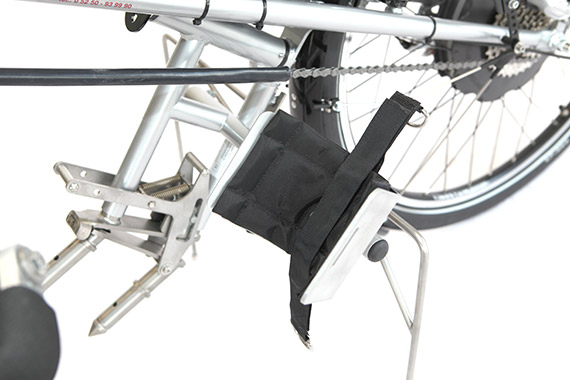

For the resting the legs in the tandem operation in case of stiff knee joints. The distance to the bike and the incline to the front and back are adjustable.

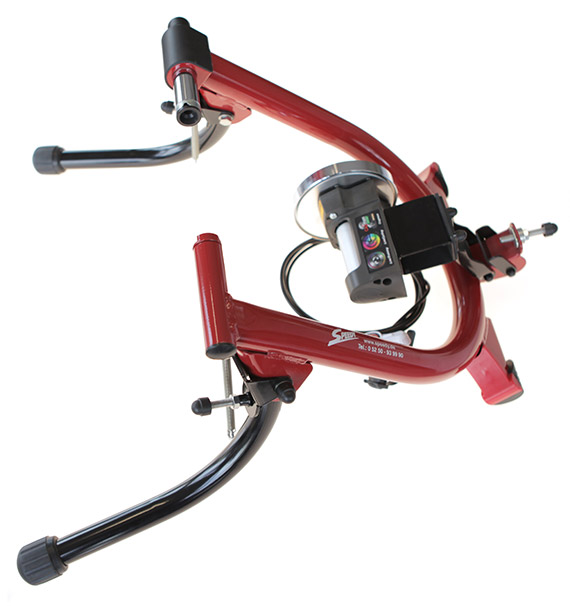

Train and maintain fitness all year round.

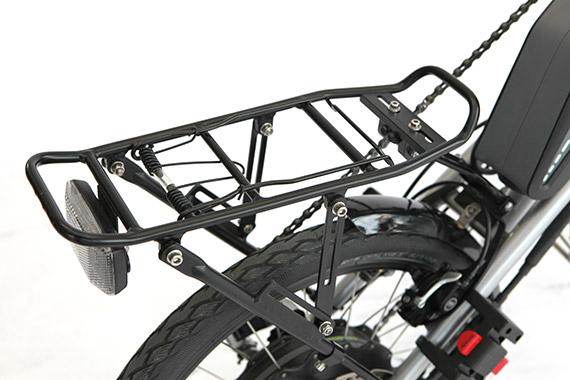

For transporting smaller items of luggage, load capacity up to 10 kg.

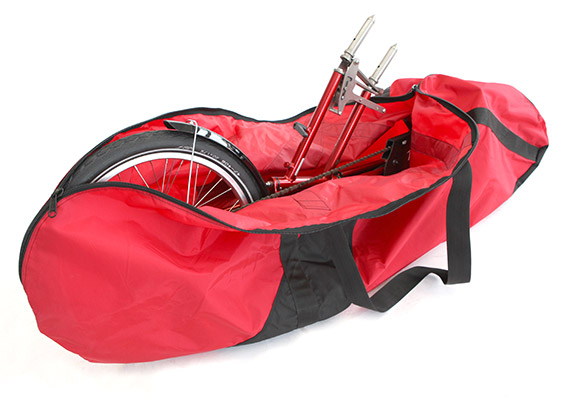

Transport bag made from durable nylon with long shoulder straps for pedestrians and short carrying handles for wheelchair users.

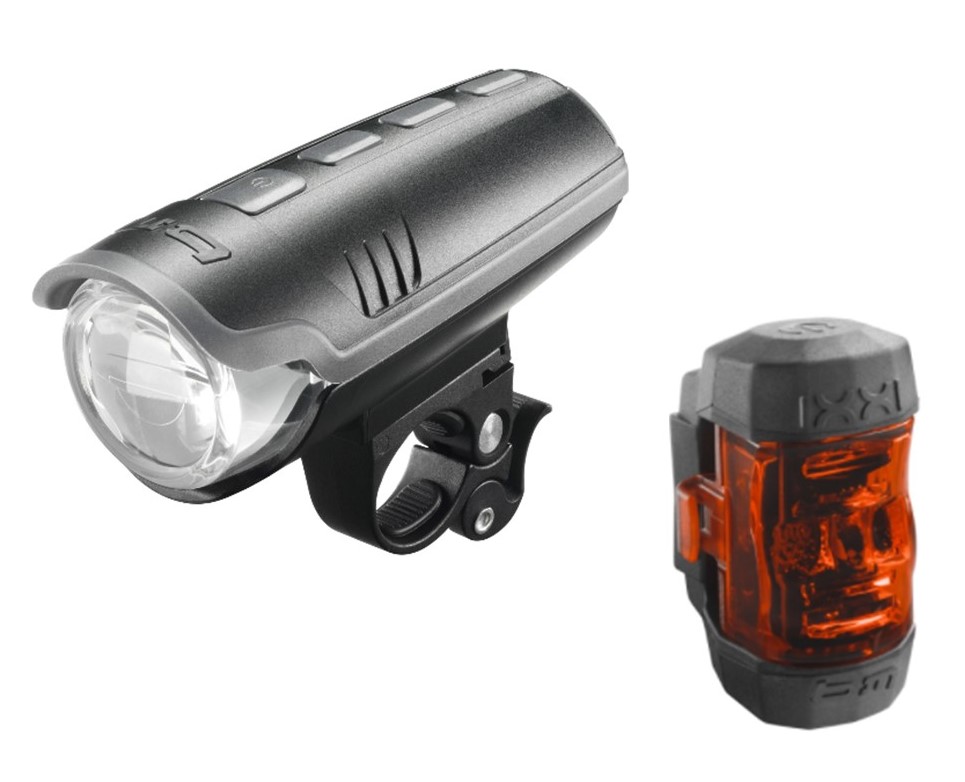

LED headlights with batteries and charger LED tail light with batteries are mounted on the wheelchair backrest.

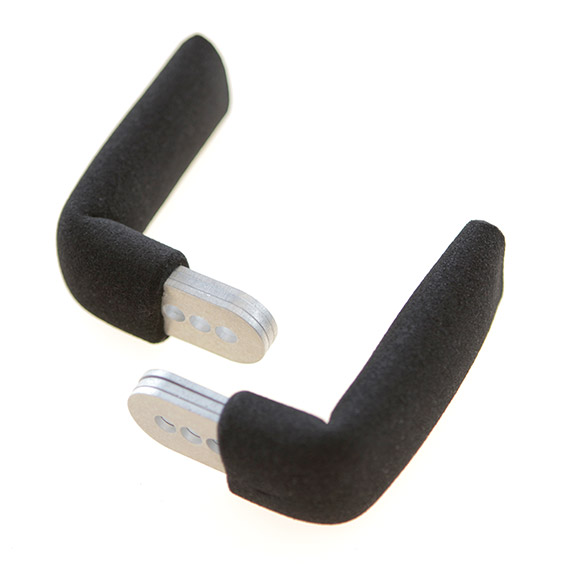

A hand guide prevents hands slipping off to the side. The gap and angle to the back of the hand can be adjusted.

A combination of back of hand and wrist support.

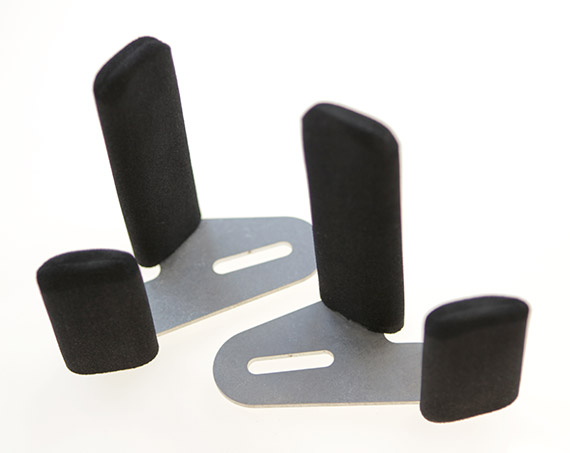

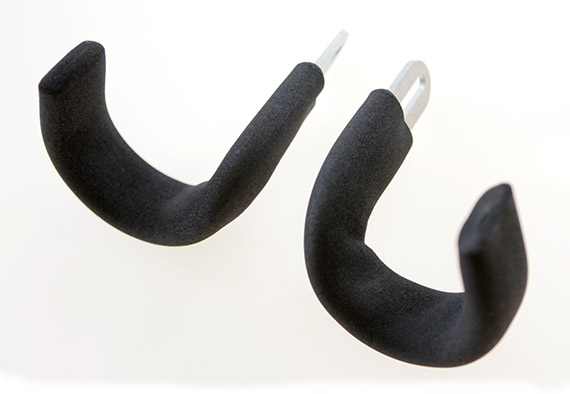

The gap, length and angle to the lower arm and wrist support can be adjusted.

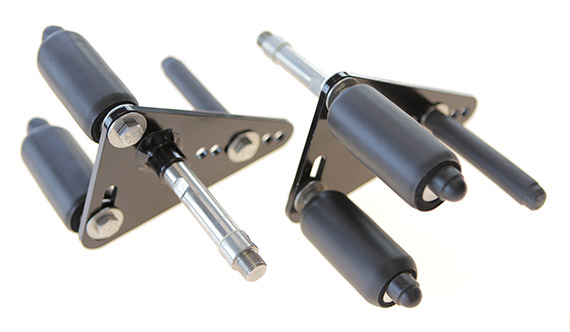

The handle with its eccentric fixation is automatically activated when the crank handle is pulled. Keeps the hand in a horizontal position.

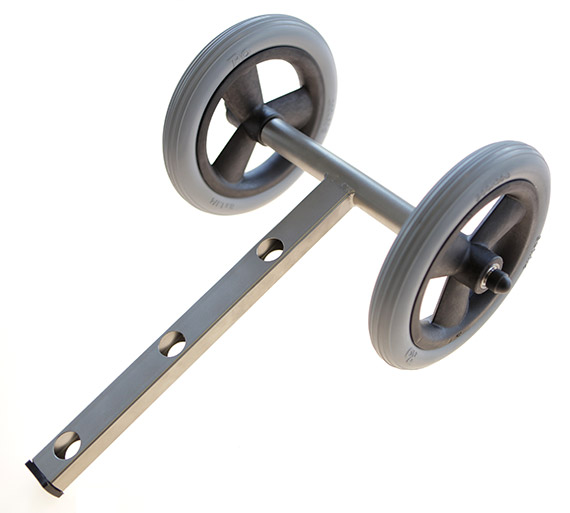

Facilitates loading into the car.
